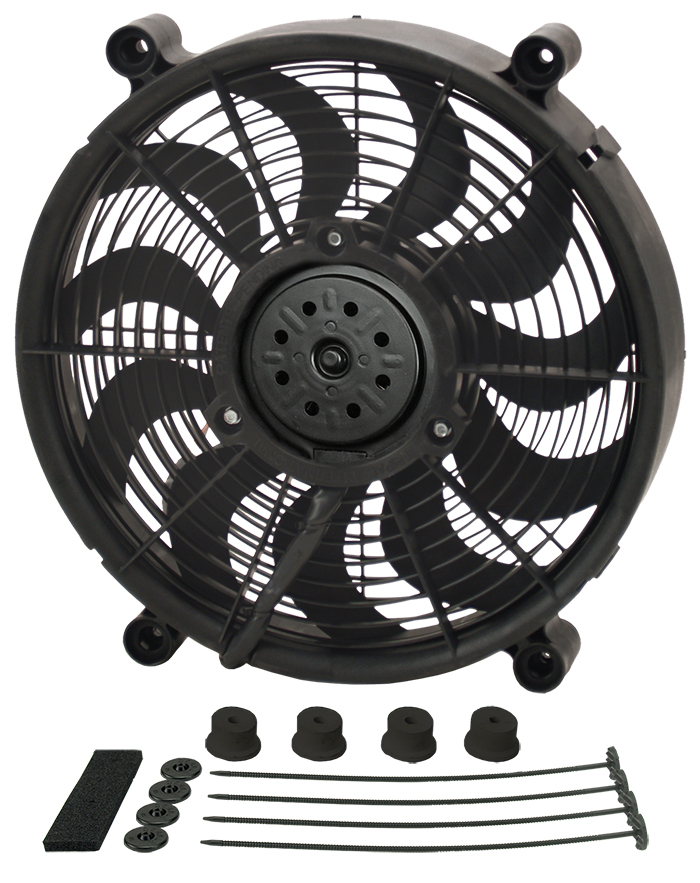

A very popular primary cooling fan, this 14" High Output RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, it can be used as a pusher or puller fan by simply flipping brackets without changing direction of the unit. Moves up to 2100 CFM while drawing up to 22 amps.

• Mounts as a Pusher or Puller without flipping blade or switching motor leads
• State-of-the-art symmetrical design
• High Output 265 watt 2 speed motor (two separate turn-on sources required for 2 speed operation)
• 2100 CFM on high speed / 1500 CFM on low speed

ULTRA - COOL 17" fans offer the highest airflow outputs in a very low profile. Under 3" thick they fit a wide variety of primary and supplemental cooling applications including cars, trucks, SUV's and custom vehicles.  The unique design allows the fans to be installed as either a puller or a pusher without having to reverse the blade or wiring. A powerful 130/170 watt two-speed motor provides high airflow even with thick or dense radiators.

17" High Performance Fans

•
  Ultra low profile (2.6")
  Reversing blade and motor wires not required
  One assembly for pusher or puller mounting
  Four mounting hardware options included:

 Adjustable ratcheting mounting system
 Direct mounting through radiator
  Radiator frame rail mounting
  Angle bracket mounting

Why your vehicle needs a Hayden Rapid-Cool Electric Fan:

Nothing destroys your engine faster than heat. To prevent expensive engine damage from heat, you need the optimum level of air flowing through your radiator. Designed to beat the heat by increasing airflow, Hayden Rapid-Cool/Thin Line electric fans are perfect for stop and go situations, extremely hot weather conditions, climbing steep grades, hauling loads and towing. Hayden Rapid-Cool/Thin Line electric fans have a thin aerodynamic profile for installation in cars with limited engine space. Preassembled with a finger-guard shroud, Rapid-Cool electric fans are reversible and fit most any car or truck.

Hayden Rapid-Cool electric fans provide the performance and protection your vehicle needs to handle the abuse of everyday driving. Stop expensive engine damage before it happens. Protect your vehicle with a Hayden Rapid-Cool/Thin Line electric fan.

Assembled in USA by Hayden Automotive  (a company of Four Seasons Division/Standard Motor Products Inc.)

What's in the box:

(1)Hayden 3670 10" S Blade Fan
(4) Mounting straps
(4) mounting strap locks
(4) Soft mounting pads
(4) mount springs


Actual cowling mount area 10 7/8 x 11 3/8.
B (inch)  1 5/8   smallest depth
C (inch)  2 5/8   actual clearance depth

CFM(1) 650
CFM(2) 500

AMP DRAW 5.4



These are  for engine oil coolers, transmission oil coolers, and electric fans.

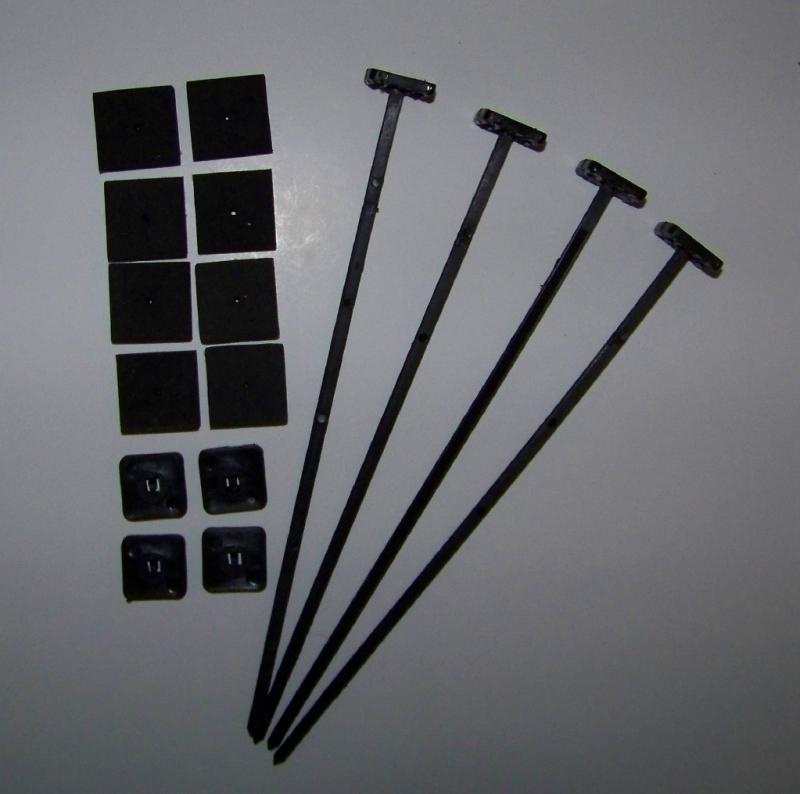

• What's in the kit:

• (4) Mounting Rods
• (4) mounting strap locks
• (4) Soft mounting pads

Durable for fans up to 16"

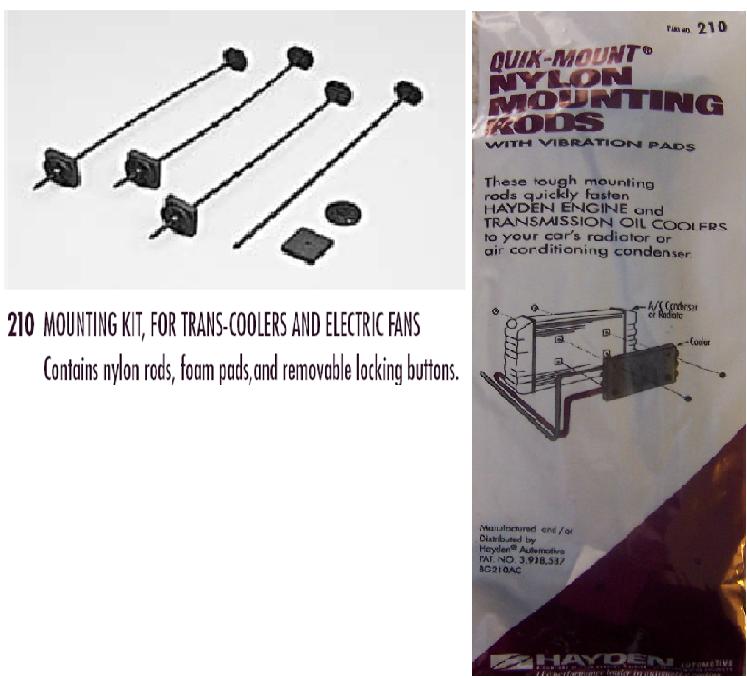

This is a mount kit for  electric fans and oil coolers.

• (4) Mounting straps
• (4) mounting strap locks
• (8) Soft mounting pads

Durable for fans up to 12"

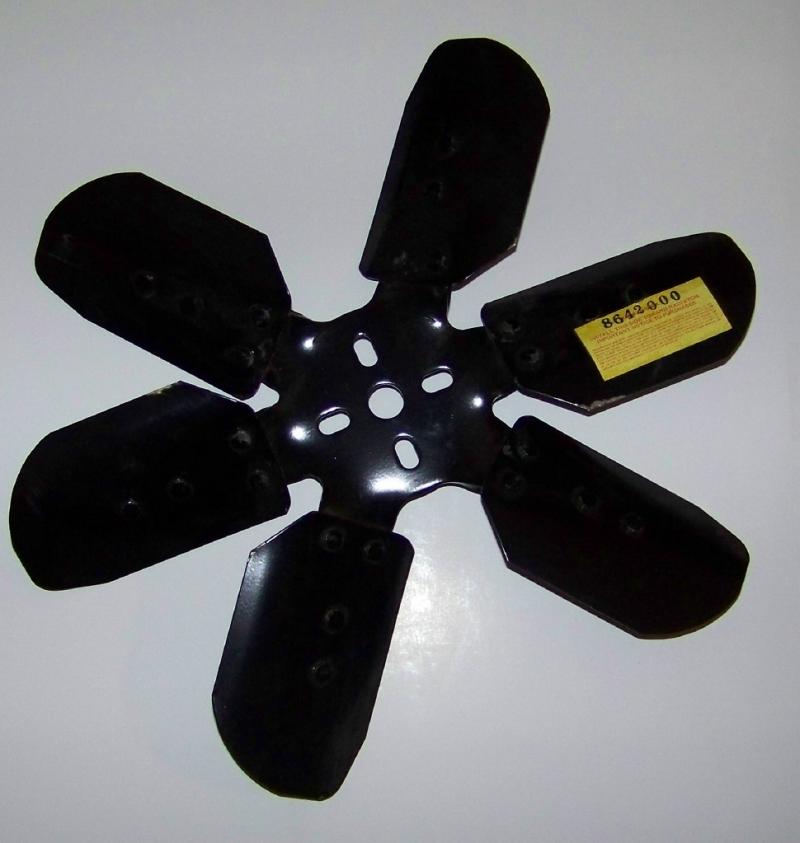

This is a 14  inch Metal Fan ONLY for direct drive use. The fans have never been used. Some of the fans have paint starting to scrape off but that is from being stacked in the factory boxes. No bolts included.

It's  universal for most cars/trucks. No plastic parts. Probably could use it for your ATVs or Jeeps, or smaller cars

Hayden# 025587 (025587-01)
FAN SIZE: 14"
Depth: 3.66"
Type:Puller
Voltage: 12VDC
AMP Draw: 10
MINIMUM SPEED 1800RPM @12 V
MAXIMUM CURRENT AT 12v 11.0 AMPS
TRIPAC P/N 14-4213S3  KAMCO MOTOR

HAYDEN INDUSTRIALThin-Line DC Fans
 Compact, thin profile construction allows for tight space installations.
The patented fan blade maximizes air flow while minimizing noise.
Mounting slots along the shroud’s diameter can utilize hex or square bolts,
 leg brackets, or nylon fastening rods. Thin-line fans are designed to work
 with the Fin-Cool® and Temp-Troller® Electra-Cool heat exchangers.

Hayden# 025587 (025587-01)
FAN SIZE: 14"
Depth: 3.66"
Type:Puller
Voltage: 12VDC
AMP Draw: 10

MINIMUM SPEED 1800RPM @12 V
MAXIMUM CURRENT AT 12v 11.0 AMPS
TRIPAC P/N 14-4213S3  KAMCO MOTOR

HAYDEN INDUSTRIAL Thin-Line DC Fans
 Compact, thin profile construction allows for tight space installations.
The patented fan blade maximizes air flow while minimizing noise.
Mounting slots along the shroud’s diameter can utilize hex or square bolts,
 leg brackets, or nylon fastening rods. Thin-line fans are designed to work
 with the Fin-Cool® and Temp-Troller® Electra-Cool heat exchangers.

THIS ITEM IS SET FOR INTERNATIONAL SHIPPING

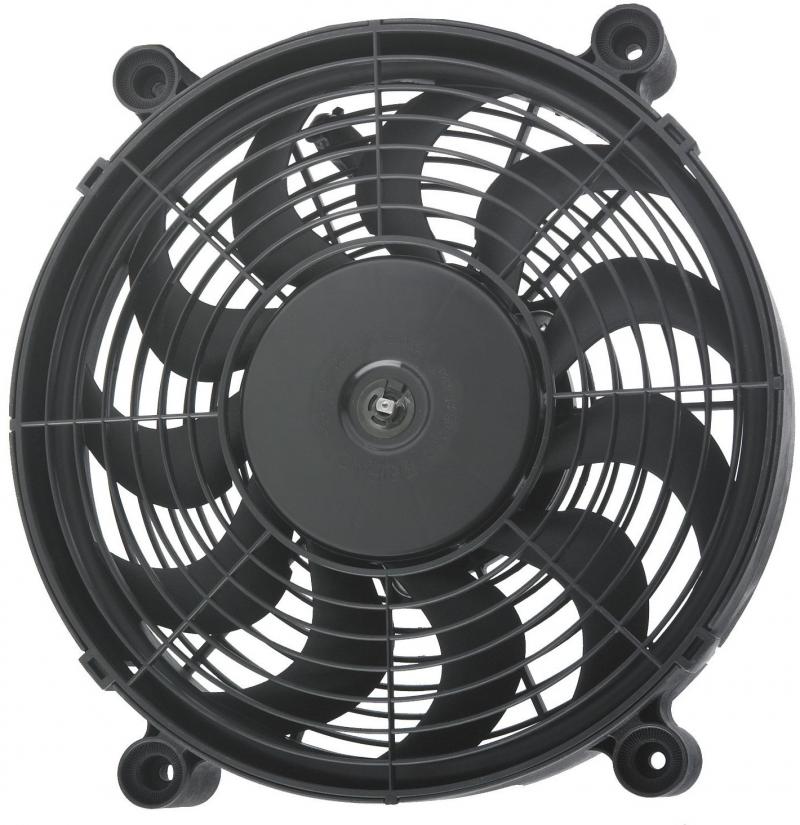

HAYDEN ULTRA COOL  High Performance Dual Speed Fan 12" Model 3812.

This is a NEW RELEASE from Hayden and not available from anywhere else!

INCLUDES:

12" 2 speed electric fan

Heavy Duty Mounting straps

Mounting strap locks

Soft mounting pads

SPECS

Airflow Through Radiator (CFM)    High 1,350
Airflow Through Radiator (CFM)    Low 1,100
AMP Draw    High 21.5
AMP Draw    Low 17.5
Free Airflow (CFM)    High 1,450
Free Airflow (CFM)    Low 1,250
Type    12" Reversible Fan Kit
Depth    2.6"
Description    13.5
Description    12"
Diameter    12"

Great for your motorhome EVEN HOTRODS too!
